简介：

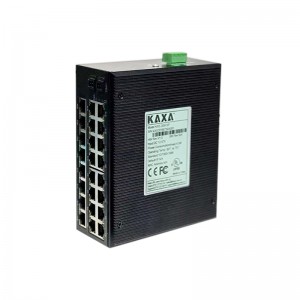

KXS 2024系列交换机是入门级非网管交换机，是专为工业自动化控制领域设计的产品。KXS 2024系列支持24个电口和2个上联SC/SFP光口。IP40防护等级的金属外壳。支持宽温(-30~75℃)和宽电压(DC12~57V)的工作环境，满足不同的工业应用要求，确保设备在恶劣的工业环境中实现快速和可靠的数据传输
优势和特点：
● 宽电压、耐高低温
● 采用工业级元器件，整机端口防雷4000V
● 双电源冗余，支持接反保护
● IP40等级防护，**金属外壳，坚固可靠
型号规格：
|
型号
Model
|
KXS 2024 Series
|
|
标准协议
Standard Protocol
|
IEEE802.3 | IEEE802.3i | IEEE802.3u | IEEE802.3af | IEEE802.3at
|
|
交换方式
Switch Type
|
存储与转发Store and forward
|
|
安全
Security
|
IEEE 802.3x full duplex, back pressure flow control
|
|
MAC地址表大小
MAC Table
|
32K
|
|
包缓冲区大小
Packet Buffer
|
8Mbit
|
|
包转发率
Mpps
|
35Mpps
|
|
交换延迟
Switching Delay
|
<10μs
|
|
背板带宽
Gbps
|
48 GHz
|
|
工作模式
Working Mode
|
全双工full duplex
|
|
应用层级
Level
|
二层Layer 2
|
|
网管模式
Management Support
|
非网管
|
|
VLAN功能
VLAN Function
|
Support 4 VLANs | support guest VLAN, voice VLAN support GVRP, GMRP protocol |
support MUX VLAN function | Supports MAC/protocol/IP subnet/policy/port based VLAN |
Supports 1:1 and N:1 VLAN mapping function error correction
|
|
安全管理
Security Management
|
Support user level management and password protection |
Support to prevent ARP, unknown multicast message, broadcast message, unknown unicast message,
TTL = 1 message, protocol message and other attacks |
Support MAC address restriction | Support IP + MAC + port binding function |
Support IEEE 802.1x | Support radius and AAA |
Support web authentication | Support SNMPv3 | Support broadcast message suppression
|
|
网管功能
Network Management
|
Support network management system and web network management features | Support ACL policy management | Support RSTP | Support ERP | Support DHCP snooping | Support loop detection | Support broadcast storm filtering | Support port mirroring, port isolation |
Support link aggregation | Support Poe management | Support SNMP V1 / V2 / V3 | Support Sflow | Support NQA | Support LLDP/LLDP-MED | Support NTP clock | Support system work log
|
|
Qos支持
Qos Support
|
Support SP / WRR / SP + WRR queue scheduling | Support 802.1p, DSCP priority mapping |
Support port speed limit
|
|
组播管理
Multicast Management
|
Support IGMP V1 / V2 / V3 snooping | Support PIM snooping | Support multicast VLAN |
Support IPv6 Multicast settings
|
|
光纤接口
Optical fiber interface
|
1000BaseFX端口(SC接口 ),1000Base-X(SFP接口) |
|
RJ45接口
RJ45 interface
|
10/100/1000BaseT(X)
|
|
接口数量
Number of port
|
24-26
|
|
尺寸
Dimensions
|
180mm×150mm×60mm
|
|
重量
Weight
|
2.75Kg
|
|
防护等级
Protection level
|
IP40
|
|
安装方式
Installation mode
|
DIN卡轨式或壁挂式 DIN clip-rail or wall-mounted
|
|
电磁兼容性
Electromagnetic Compatibility
|
四级Level 4
|
|
输入电压
Input Voltage
|
12-57 VDC
|
|
接入端子
Terminal Insert
|
4P 5.08mm 间距式插入
|
|
保护支持
Protect Support
|
Overload; Reverse connection; Redundancy
|
|
工作温度
Operating Temp
|
-30~75°C
|
|
存储温度
Storage Temp
|
-30~75°C
|
|
安规认证
Safety Certification
|
CE | FCC
|
|
平均无故障时间
MTBF
|
600000h
|
|
说明书下载
Download
|
KXS 2024 Series
|
