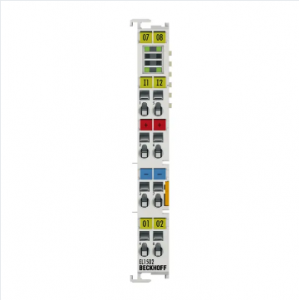

| Connection technology |
1 x up/down counter, 2 x up or down counter |
| Specification |
EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Number of counters |
1 or 2 |
| Nominal voltage |
24 V DC (-15 %/+20 %) |
| “0” signal voltage |
-3…+5 V (EN 61131-2, type 1) |
| “1” signal voltage |
15…30 V (EN 61131-2, type 1) |
| Input current |
typ. 5 mA (EN 61131-2, type 1) |
| Counting frequency |
max. 100 kHz |
| Distributed clocks |
yes |
| Max. output current |
24 V/0.5 A (short-circuit proof) per channel |
| Current consumption power contacts |
typ. 14 mA + load |
| Current consumption E-bus |
typ. 130 mA |
| Counter depth |
32 bit |
| Electrical isolation |
500 V (E-bus/field potential) |
| Configuration |
no address setting, configuration via the EtherCAT master |
| Special features |
set counters, switch outputs |
| Weight |
approx. 50 g |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| Relative humidity |
95 %, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/variable |
| Pluggable wiring |
for all ESxxxx terminals |
| Approvals/markings |
CE, UL, ATEX, IECEx |
| Ex marking |
ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc |
