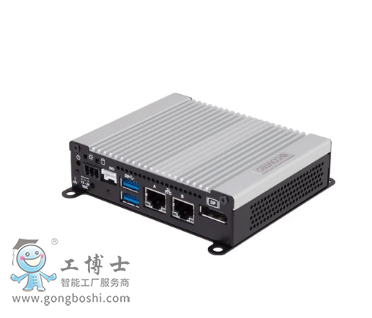

BX-U200盒式计算机 BX-U200 - 无风扇嵌入式PC /超小型设计 /Atom x5-E3940 /1x USB Type-C /有配置Wi-Fi&Bluetooth机型



• Adopted the Intel Atom x5-E3940 processor that reduces running costs and energy usage
• An extremely compact computer with an installation area the size of just two business cards that contributes to the miniaturization of equipment
• Supports a wide range of temperature environments from -30°C to 50°C
• Power supply/charging and video output with a single cable
• Can be installed to the rear of LCD monitors or on DIN rails
• Safety design required for embedded applications

机能规格

机箱设计

设置方式	Wall Mount

支持的软件

支持的操作系统	Windows 10 IoT Enterprise 64-bit

核心系统

CPU接口	-
处理器	Atom x5-E3940
内存	4GB
RAS	Hardware monitor (Temperature / Voltage); Watchdog timer
安全特性（TPM）	TCG TPM2.0

外部接口

显示器	1x DisplayPort; 1x USB 3.1 Gen1 (USB3.0) Type-C [DP Alt Mode]
LAN	1x wireless LAN IEEE802.11ac/a/b/g/n; 2x 1000BASE-T
音频	-
I/O	1x USB 3.1 Gen1 (USB3.0) Type-C; 2x USB3.1 Gen1 (USB3.0)
存储卡	1x M.2 2242

扩展插槽

扩展总线	1x M.2 Key-E (2230); 1x M.2 Key-M (2242)
Drive bay	-

电源

输入电压	6 to 37VDC; USB Power Delivery 15VDC

设置环境

工作温度	-30 to 70°C (-22 to 158°F) (w/ optional cooling fan); -30 to 50°C (-22 to 122°F)
储存温度	-30 to 70°C (-22 to 158°F)
