产品配置：

机箱：IPC-610MB-L
主板：AIMB-701VG
CPU：I5-2400
内存：4G
硬盘：1T
DVD光驱，鼠标，键盘

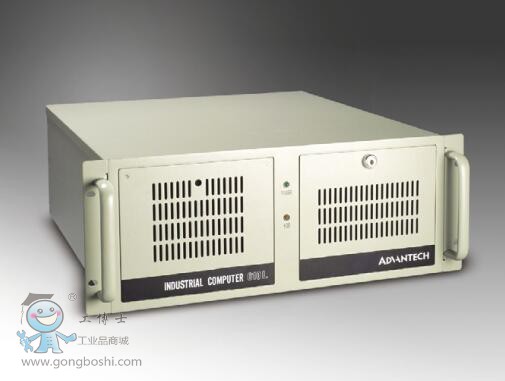

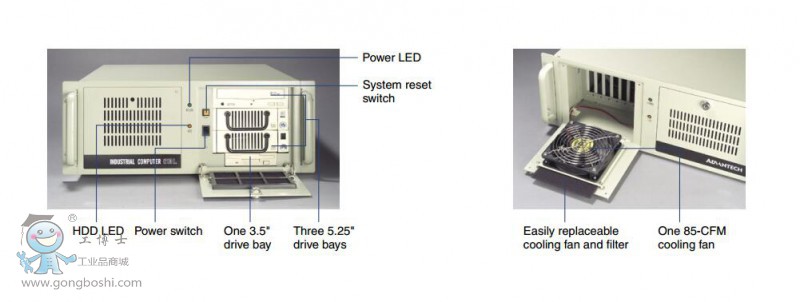

机箱说明：

• Supports an ATX motherboard or a backplane with up to 15 slots
• Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
• Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations
• Power and HDD activity notification improves system availability
• Front-accessible air filter for easy system maintenance
• Lockable front door prevents unauthorized access
• Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

Specifications

Drive Bay	Front-accessible
5.25"	3
3.5"	1
Cooling	Fan	1 (85 CFM)
Air Filter	Yes
Miscellaneous	Slide Rail	General Device C-300 series supported (Not included)
Indicator	Power & HDD activity
Rear Panel	Reserved one D-SUB 9-pin and one 68-pin SCSI openings
Environment	Operating	Non-Operating
Temperature	0 ~ 40 °C (32 ~ 104 °F)	-20 ~ 60 °C (-4 ~ 140 °F)
Humidity	-20 ~ 60 °C (-4 ~ 140 °F)	10 ~ 95 % @ 40 °C, non-condensing
Vibration (5 ~ 500 MHz)	1 Grms	2 G
Shock	10 G (With 11 msec duration, 1/2 sine wave)	30 G
Acoustic Noise	Less than 52 dB sound pressure at 5 ~ 28 °C (41 ~ 82 °F)
Altitude	0 to 3048 m (0 ~ 10,000 ft)
Physical Characteristics	Dimensions (W x H x D)	482 x 177 x 480 mm (19" x 7" x 18.9")
Weight	16.5 kg (36.3 lb)

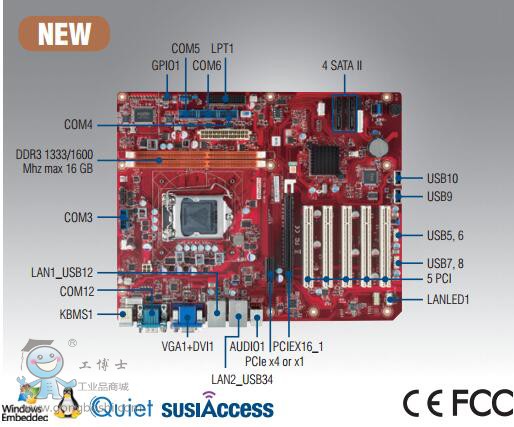

主板说明：

 AIMB-701 LGA1155 3rd Intel® Core™ i7/i5/i3/ Pentium® ATX with DVI/VGA, Dual GbE LAN

• Supports Intel® Core™ i7/i5/i3/Pentium processor with H61 chipset
• Two DIMM sockets support up to 16 GB DDR3 1066/1333
• Supports dual display VGA/DVI-D and dual GbE LAN
• Supports RS232/422/485 with auto flow control
• Supports One PCIe x16 and 5 PCI expansion slots

Specifications

Processor System	CPU	Core i7 3xxx	Core i5 3xxx	Core i3 3xxx	Pentium G8xx
Speed	3.4 GHz	3.4/3.3 GHz	3.4 GHz	2.9 GHz
L3 Cache	8 MB	6 MB	3 MB	3 MB
Socket	LGA1155
Chipset	H61
BIOS	AMI 64 Mbit SPI
Expansion Slot	PCI	32-bit/33 MHz, 5 slots
PCIe x 1 (Gen2)	500 MB/s, 1 slot for G2 SKU
PCIe x 4 (Gen2)	2.0 GB/s, 1 slot for VG SKU
PCIe x16 (Gen2)	8 GB/s, 1 slot
Memory	Technology	Dual Channel DDR3 1066/1333/1600 (1600 is only supported by Core i7/i5/i3 3xxx series processors)
Max. Capacity	16 GB
Socket	2 x 240-pin DIMM
Graphics	Controller	Intel HD Graphics
VRAM	1 GB maximum shared memory with 2 GB and above system memory installed
Ethernet	Interface	10/100/1000 Mbps
Controller	GbE LAN1: Intel 82579V, GbE LAN2: Intel 82583V
Connector	RJ-45 x 2
SATA	Max Data Transfer Rate	300 MB/s
Channel	4
Rear I/O	VGA	1
DVI	1 for G2 version
Ethernet	2 for G2 version; 1 for VG version
USB	4
Audio	2 (Mic-in, Line-out)
Serial	2 (RS-232)
PS/2	2 (1 x keyboard and 1 x mouse)
Internal Connectors	USB	6
Serial	4 for G2 version (3 x RS-232, 1 x RS-232/422/485 with auto-ow control)
IDE	-
SATA	4
Parallel	1
IrDA	1
GPIO	8-bit
Watchdog Timer	Output	System reset
Interval	Programmable 1 ~ 255 sec
Power Requirement	Power On	Intel i7 2600 3.4 GHz processor, DDR3 4 GB x 2
3.3 V	5 V	12 V	5 Vsb
1.01 A	1.08 A	5.48 A	1.76 A
Environment	Operating	Non-Operating
Temperature	0 ~ 60° C (32 ~ 140° F) (Depends on CPU speed and cooler solution)	-40 ~ 85° C (-40 ~ 185° F)
Physical Characteristics	Dimensions	304.8 x 244 mm (12" x 9.6")
